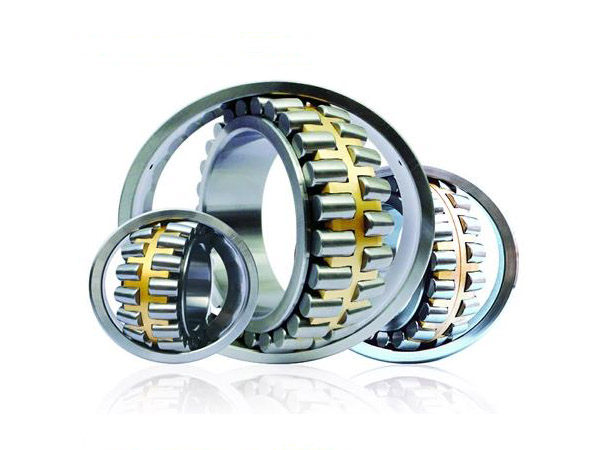

Spherical Roller Bearings
| Spherical Roller Bearings |
|
商品詳細介紹：
調(diào)心滾子軸承： 外圈是以軸承中心點為球心的球面，具有自動調(diào)心性，滾動體與內(nèi)、外圈滾道之間是線性接觸，能承受大的徑向載荷。適用于礦山、冶金、造紙、建筑等大型機械設備。 |
|
| 軸承型號 |
基本尺寸 |
基本額定載荷(kN) |
極限轉(zhuǎn)速(rpm) |
重量(kg) |
| dxDxB |
動(Cr) |
靜(Cor) |
脂潤滑 |
油潤滑 |
| 23020CA/W33 |
100x150x37 |
215 |
400 |
2400 |
3200 |
2.51 |
| 23120CA/W33 |
100x165x52 |
287 |
510 |
2000 |
2800 |
4.42 |
| 23120MB/W33 |
100x165x52 |
287 |
510 |
2000 |
2800 |
4.42 |
| 23120CC/W33 |
100x165x52 |
287 |
510 |
2000 |
2800 |
4.32 |
| 23120CC/W33/X2 |
100x165x52x65 |
287 |
510 |
2000 |
2800 |
5.02 |
| 23220CA/W33 |
100x180x60.3 |
400 |
570 |
1700 |
2200 |
6.58 |
| 23220MB/W33 |
100x180x60.3 |
400 |
570 |
1700 |
2200 |
6.58 |
| 24120CA/W33 |
100x165x65 |
414 |
582 |
1800 |
2600 |
5.55 |
| 24120CC/W33 |
100x165x65 |
414 |
582 |
1800 |
2600 |
5.45 |
| 24020CA/W33 |
100x150x50 |
260 |
377 |
2200 |
3000 |
3.45 |
| 24020CC/W33 |
100x150x50 |
260 |
377 |
2200 |
3000 |
3.15 |
| 22220CA/W33 |
100x180x46 |
277 |
425 |
2200 |
3000 |
5.18 |
| 22220MB/W33 |
100x180x46 |
277 |
425 |
2200 |
3000 |
5.18 |
| 22220CC/W33 |
100x180x46 |
277 |
425 |
2200 |
3000 |
5.02 |
| 22320CA/W33 |
100x215x73 |
540 |
815 |
1700 |
2200 |
14.0 |
| 22320MB/W33 |
100x215x73 |
540 |
815 |
1700 |
2200 |
15.0 |
| 22320CC/W33 |
100x215x73 |
540 |
815 |
1700 |
2200 |
13.8 |
| 23121CA/W33 |
105x175x56 |
365 |
550 |
1900 |
2700 |
5.48 |
| 23022CA/W33 |
110x170x45 |
253 |
460 |
2200 |
3000 |
3.54 |
| 23022MB/W33 |
110x170x45 |
253 |
460 |
2200 |
3000 |
3.54 |
| 23022CC/W33 |
110x170x45 |
253 |
460 |
2200 |
3000 |
3.24 |
| 21322CA/W33 |
110x240x50 |
450 |
580 |
1700 |
2400 |
11.5 |
| 23122CA/W33 |
110x180x56 |
325 |
580 |
1900 |
2600 |
5.73 |
| 23122MB/W33 |
110x180x56 |
325 |
580 |
1900 |
2600 |
5.73 |
| 23122CC/W33 |
110x180x56 |
325 |
580 |
1900 |
2600 |
5.50 |
| 23222CA/W33 |
110x200x69.8 |
490 |
720 |
1600 |
2000 |
10.1 |
| 23222MB/W33 |
110x200x69.8 |
490 |
720 |
1600 |
2000 |
10.1 |
| 23222CC/W33 |
110x200x69.8 |
490 |
720 |
1600 |
2000 |
9.95 |
| 24122CA/W33 |
110x180x69 |
425 |
750 |
1600 |
2000 |
6.92 |
| 24122MB/W33 |
110x180x69 |
425 |
750 |
1600 |
2000 |
6.92 |
| 24122CC/W33 |
110x180x69 |
425 |
750 |
1600 |
2000 |
6.72 |
| 24022CA/W33 |
110x170x60 |
378 |
565 |
1800 |
2500 |
5.00 |
| 24022MB/W33 |
110x170x60 |
378 |
565 |
1800 |
2500 |
5.00 |
| 24022CC/W33 |
110x170x60 |
378 |
565 |
1800 |
2500 |
4.71 |
| 22222CA/W33 |
110x200x53 |
345 |
545 |
2000 |
2800 |
7.43 |
| 22222MB/W33 |
110x200x53 |
345 |
545 |
2000 |
2800 |
7.43 |
| 22222CC/W33 |
110x200x53 |
345 |
545 |
2000 |
2800 |
7.15 |
| 22322CA/W33 |
110x240x80 |
630 |
955 |
1400 |
1800 |
18.9 |
| 22322MB/W33 |
110x240x80 |
630 |
955 |
1400 |
1800 |
18.9 |
| 22322CC/W33 |
110x240x80 |
630 |
955 |
1400 |
1800 |
18.6 |
| 23024CA/W33 |
120x180x46 |
263 |
495 |
2000 |
2800 |
4.19 |
| 23024MB/W33 |
120x180x46 |
263 |
495 |
2000 |
2800 |
4.19 |
| 23024CC/W33 |
120x180x46 |
263 |
495 |
2000 |
2800 |
4.01 |
| 23124CA/W33 |
120x200x62 |
405 |
715 |
1800 |
2400 |
13.4 |
| 23124MB/W33 |
120x200x62 |
405 |
715 |
1800 |
2400 |
13.4 |
| 23124CC/W33 |
120x200x62 |
405 |
715 |
1800 |
2400 |
13.1 |
| 23224CA/W33 | ,
120x215x76 |
535 |
940 |
1500 |
1900 |
12.1 |
| 23224MB/W33 |
120x215x76 |
535 |
940 |
1500 |
1900 |
12.1 |
| 23224CC/W33 |
120x215x76 |
535 |
940 |
1500 |
1900 |
11.8 |
| 24124CA/W33 |
120x200x80 |
495 |
925 |
900 |
1200 |
10.6 |
| 24124MB/W33 |
120x200x80 |
495 |
925 |
900 |
1200 |
10.6 |
| 24124CC/W33 |
120x200x80 |
495 |
925 |
900 |
1200 |
10.2 |
| 24024CA/W33 |
120x180x60 |
325 |
660 |
1600 |
2000 |
5.83 |
| 24024MB/W33 |
120x180x60 |
325 |
660 |
1600 |
2000 |
5.83 |
| 24024CC/W33 |
120x180x60 |
325 |
660 |
1600 |
2000 |
5.52 |
| 22224CA/W33 |
120x215x58 |
445 |
735 |
1900 |
2600 |
10.3 |
| 22224MB/W33 |
120x215x58 |
445 |
735 |
1900 |
2600 |
10.3 |
| 22224CC/W33 |
120x215x58 |
445 |
735 |
1900 |
2600 |
10.1 |
| 22324CA/W33 |
120x260x86 |
780 |
1160 |
1400 |
1800 |
23.8 |
| 22324MB/W33 |
120x260x86 |
780 |
1160 |
1400 |
1800 |
23.8 |
| 22324CC/W33 |
120x260x86 |
780 |
1160 |
1400 |
1800 |
23.2 |
| 23026CA/W33 |
130x200x52 |
340 |
650 |
1900 |
2600 |
7.04 |
| 23026MB/W33 |
130x200x52 |
340 |
650 |
1900 |
2600 |
7.04 |
| 23026CC/W33 |
130x200x52 |
340 |
650 |
1900 |
2600 |
6.85 |
| 23126CA/W33 |
130x210x64 |
430 |
790 |
1700 |
2200 |
9.56 |
| 23126MB/W33 |
130x210x64 |
430 |
790 |
1700 |
2200 |
9.56 |
| 23126CC/W33 |
130x210x64 |
430 |
790 |
1700 |
2200 |
9.25 |
| 23226CA/W33 |
130x230x80 |
607 |
1020 |
1300 |
1700 |
15.9 |
| 23226MB/W33 |
130x230x80 |
607 |
1020 |
1300 |
1700 |
15.9 |
| 23226CC/W33 |
130x230x80 |
607 |
1020 |
1300 |
1700 |
15.6 |
| 24126CA/W33 |
130x210x80 |
598 |
910 |
1500 |
1900 |
11.0 |
| 24126MB/W33 |
130x210x80 |
598 |
910 |
1500 |
1900 |
11.0 |
| 24126CC/W33 |
130x210x80 |
598 |
910 |
1500 |
1900 |
10.8 |
| 24026CA/W33 |
130x200x69 |
491 |
740 |
1700 |
2500 |
8.05 |
| 24026MB/W33 |
130x200x70 |
491 |
740 |
1700 |
2500 |
8.05 |
| 24026CC/W33 |
130x200x71 |
491 |
740 |
1700 |
2500 |
7.85 |
| 22226CA/W33 |
130x230x64 |
490 |
805 |
1800 |
2400 |
12.4 |
| 22226MB/W33 |
130x230x64 |
490 |
805 |
1800 |
2400 |
12.4 |
| 22226CC/W33 |
130x230x64 |
490 |
805 |
1800 |
2400 |
12.1 |
| 22326CA/W33 |
130x280x93 |
840 |
1300 |
1300 |
1700 |
18.3 |
| 22326MB/W33 |
130x280x93 |
840 |
1300 |
1300 |
1700 |
18.3 |
| 22326CC/W33 |
130x280x93 |
840 |
1300 |
1300 |
1700 |
18.1 |
| 23028CA/W33 |
140x210x53 |
365 |
705 |
1800 |
2400 |
6.70 |
| 23028MB/W33 |
140x210x53 |
365 |
705 |
1800 |
2400 |
6.70 |
| 23028CC/W33 |
140x210x53 |
365 |
705 |
1800 |
2400 |
6.50 |
| 23128CA/W33 |
140x225x68 |
490 |
935 |
1600 |
2000 |
10.9 |
| 23128MB/W33 |
140x225x68 |
490 |
935 |
1600 |
2000 |
10.9 |
| 23128CC/W33 |
140x225x68 |
490 |
935 |
1600 |
2000 |
10.6 |
| 23228CA/W33 |
140x250x88 |
910 |
1365 |
1200 |
1600 |
19.7 |
| 23228MB/W33 |
140x250x88 |
910 |
1365 |
1200 |
1600 |
19.7 |
| 23228CC/W33 |
140x250x88 |
910 |
1365 |
1200 |
1600 |
19.4 |
| 23328CA/W33 |
140x300x118 |
1300 |
2050 |
1000 |
1400 |
42.2 |
| 23328MB/W33 |
140x300x118 |
1300 |
2050 |
1000 |
1400 |
42.2 |
| 23928CA/W33 |
140x190x37 |
298 |
680 |
2200 |
3000 |
3.1 |
| 24128CA/W33 |
140x225x85 |
580 |
1150 |
850 |
1100 |
13.5 |
| 24128MB/W33 |
140x225x85 |
580 |
1150 |
850 |
1100 |
13.5 |
| 24128CC/W33 |
140x225x85 |
580 |
1150 |
850 |
1100 |
13.1 |
| 24028CA/W33 |
140x210x69 |
518 |
818 |
1700 |
2200 |
8.55 |
| 24028MB/W33 |
140x210x69 |
518 |
818 |
1700 |
2200 |
8.55 |
| 24028CC/W33 |
140x210x69 |
518 |
818 |
1700 |
2200 |
8.14 |
| 22228CA/W33 |
140x250x68 |
560 |
930 |
1700 |
2200 |
16.2 |
| 22228MB/W33 |
140x250x68 |
560 |
930 |
1700 |
2200 |
16.2 |
| 22228CC/W33 |
140x250x68 |
560 |
930 |
1700 |
2200 |
15.7 |
| 22328CA/W33 |
140x300x102 |
1210 |
1950 |
1100 |
1500 |
35.5 |
| 22328MB/W33 |
140x300x102 |
1210 |
1950 |
1100 |
1500 |
35.5 |
| 22328CC/W33 |
140x300x102 |
1210 |
1950 |
1100 |
1500 |
35.1 |
| 23030CA/W33 |
150x225x56 |
400 |
795 |
1700 |
2200 |
7.44 |
| 23030MB/W33 |
150x225x56 |
400 |
795 |
1700 |
2200 |
7.44 |
| 23030CC/W33 |
150x225x56 |
400 |
795 |
1700 |
2200 |
7.24 |
| 23130CA/W33 |
150x250x80 |
745 |
885 |
1400 |
1800 |
16.9 |
| 23130MB/W33 |
150x250x80 |
745 |
885 |
1400 |
1800 |
16.9 |
| 23130CC/W33 |
150x250x80 |
745 |
885 |
1400 |
1800 |
16.4 |
| 23230CA/W33 |
150x270x96 |
950 |
1550 |
1100 |
1500 |
26.6 |
| 23230MB/W33 |
150x270x96 |
950 |
1550 |
1100 |
1500 |
26.6 |
| 23230CC/W33 |
150x270x96 |
950 |
1550 |
1100 |
1500 |
26.2 |
| 24130CA/W33 |
150x250x100 |
928 |
1390 |
1400 |
1800 |
20.2 |
| 24130MB/W33 |
150x250x100 |
928 |
1390 |
1400 |
1800 |
20.2 |
| 24130CC/W33 |
150x250x100 |
928 |
1390 |
1400 |
1800 |
20.0 |
| 24030CA/W33 |
150x225x75 |
500 |
1050 |
1300 |
1700 |
9.39 |
| 24030MB/W33 |
150x225x75 |
500 |
1050 |
1300 |
1700 |
9.39 |
| 24030CC/W33 |
150x225x75 |
500 |
1050 |
1300 |
1700 |
9.11 |
| 22230CA/W33 |
150x270x73 |
630 |
1050 |
1600 |
2000 |
18.7 |
| 22230MB/W33 |
150x270x73 |
630 |
1050 |
1600 |
2000 |
18.7 |
| 22230CC/W33 |
150x270x73 |
630 |
1050 |
1600 |
2000 |
18.2 |
| 22330CA/W33 |
150x320x108 |
1120 |
1810 |
1000 |
1400 |
14.5 |
| 22330MB/W33 |
150x320x108 |
1120 |
1810 |
1000 |
1400 |
14.5 |
| 22330CC/W33 |
150x320x108 |
1120 |
1810 |
1000 |
1400 |
14.1 |
| 23032CA/W33 |
160x240x60 |
445 |
875 |
1700 |
2200 |
8.86 |
| 23032MB/W33 |
160x240x60 |
445 |
875 |
1700 |
2200 |
8.86 |
| 23032CC/W33 |
160x240x60 |
445 |
875 |
1700 |
2200 |
8.42 |
| 23132CA/W33 |
160x270x86 |
765 |
1430 |
1300 |
1700 |
21.9 |
| 23132MB/W33 |
160x270x86 |
765 |
1430 |
1300 |
1700 |
21.9 |
| 23132CC/W33 |
160x270x86 |
765 |
1430 |
1300 |
1700 |
21.4 |
| 23232CA/W33 |
160x290x104 |
955 |
1770 |
1000 |
1400 |
30.2 |
| 23232MB/W33 |
160x290x104 |
955 |
1770 |
1000 |
1400 |
30.2 |
| 23232CC/W33 |
160x290x104 |
955 |
1770 |
1000 |
1400 |
30.0 |
| 23932CA/W33 |
160x220x45 |
350 |
720 |
2000 |
2600 |
5.12 |
| 24132CA/W33 |
160x270x109 |
865 |
1690 |
1000 |
1400 |
24.6 |
| 24132MB/W33 |
160x270x109 |
865 |
1690 |
1000 |
1400 |
24.6 |
| 24132CC/W33 |
160x270x109 |
865 |
1690 |
1000 |
1400 |
24.2 |
| 24032CA/W33 |
160x240x80 |
570 |
1210 |
1100 |
1500 |
13.2 |
| 24032MB/W33 |
160x240x80 |
570 |
1210 |
1100 |
1500 |
13.2 |
| 24032CC/W33 |
160x240x80 |
570 |
1210 |
1100 |
1500 |
13.0 |
| 22232CA/W33 |
160x290x80 |
750 |
1300 |
1500 |
1900 |
24.6 | ,
| 22232MB/W33 |
160x290x80 |
750 |
1300 |
1500 |
1900 |
24.6 |
| 22232CC/W33 |
160x290x80 |
750 |
1300 |
1500 |
1900 |
24.3 |
| 22332CA/W33 |
160x340x114 |
1270 |
2050 |
950 |
1300 |
52.8 |
| 22332MB/W33 |
160x340x114 |
1270 |
2050 |
950 |
1300 |
52.8 |
| 22332CC/W33 |
160x340x114 |
1270 |
2050 |
950 |
1300 |
52.5 | |
|
|
