調心滾子軸承
| 調心滾子軸承 |
|
商品詳細介紹：

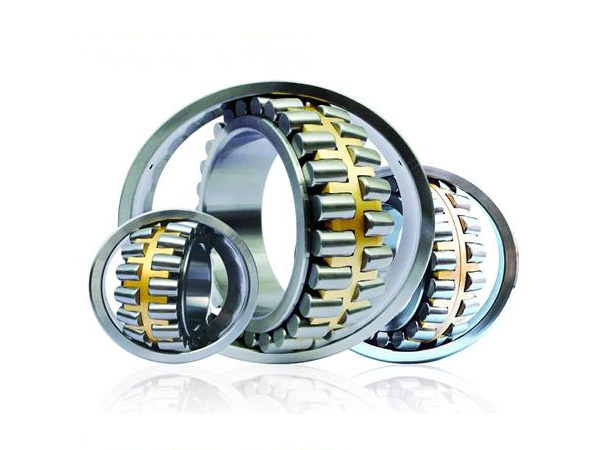

調心滾子軸承： 外圈是以軸承中心點為球心的球面，具有自動調心性，滾動體與內、外圈滾道之間是線性接觸，能承受大的徑向載荷。適用于礦山、冶金、造紙、建筑等大型機械設備。 |
|
|
|
軸承型號 |
基本尺寸 |
基本額定載荷(kN) |
極限轉速 |
重量 |
|

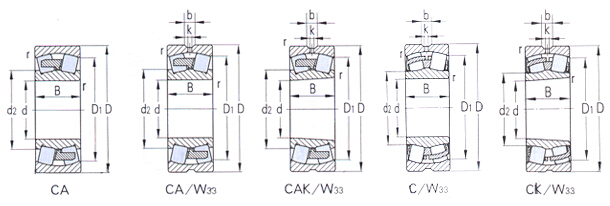

dxDxB |
動(Cr) |
靜(Cor) |
脂潤滑 |
油潤滑 |
|
23020CA/W33 |
100x150x37 |
215 |
400 |
2400 |
3200 |
2.51 |
|
23120CA/W33 |
100x165x52 |
287 |
510 |
2000 |
2800 |
4.42 |
|
23120MB/W33 |
100x165x52 |
287 |
510 |
2000 |
2800 |
4.42 |
|
23120CC/W33 |
100x165x52 |
287 |
510 |
2000 |
2800 |
4.32 |
|
23120CC/W33/X2 |
100x165x52x65 |
287 |
510 |
2000 |
2800 |
5.02 |
|
23220CA/W33 |
100x180x60.3 |
400 |
570 |
1700 |
2200 |
6.58 |
|
23220MB/W33 |
100x180x60.3 |
400 |
570 |
1700 |
2200 |
6.58 |
|
24120CA/W33 |
100x165x65 |
414 |
582 |
1800 |
2600 |
5.55 |
|
24120CC/W33 |
100x165x65 |
414 |
582 |
1800 |
2600 |
5.45 |
|
24020CA/W33 |
100x150x50 |
260 |
377 |
2200 |
3000 |
3.45 |
|
24020CC/W33 |
100x150x50 |
260 |
377 |
2200 |
3000 |
3.15 |
|
22220CA/W33 |
100x180x46 |
277 |
425 |
2200 |
3000 |
5.18 |
|
22220MB/W33 |
100x180x46 |
277 |
425 |
2200 |
3000 |
5.18 |
|
22220CC/W33 |
100x180x46 |
277 |
425 |
2200 |
3000 |
5.02 |
|
22320CA/W33 |
100x215x73 |
540 |
815 |
1700 |
2200 |
14.0 |
|
22320MB/W33 |
100x215x73 |
540 |
815 |
1700 |
2200 |
15.0 |
|
22320CC/W33 |
100x215x73 |
540 |
815 |
1700 |
2200 |
13.8 |
|
23121CA/W33 |
105x175x56 |
365 |
550 |
1900 |
2700 |
5.48 |
|
23022CA/W33 |
110x170x45 |
253 |
460 |
2200 |
3000 |
3.54 |
|
23022MB/W33 |
110x170x45 |
253 |
460 |
2200 |
3000 |
3.54 |
|
23022CC/W33 |
110x170x45 |
253 |
460 |
2200 |
3000 |
3.24 |
|
21322CA/W33 |
110x240x50 |
450 |
580 |
1700 |
2400 |
11.5 |
|
23122CA/W33 |
110x180x56 |
325 |
580 |
1900 |
2600 |
5.73 |
|
23122MB/W33 |
110x180x56 |
325 |
580 |
1900 |
2600 |
5.73 |
|
23122CC/W33 |
110x180x56 |
325 |
580 |
1900 |
2600 |
5.50 |
|
23222CA/W33 |
110x200x69.8 |
490 |
720 |
1600 |
2000 |
10.1 |
|
23222MB/W33 |
110x200x69.8 |
490 |
720 |
1600 |
2000 |
10.1 |
|
23222CC/W33 |
110x200x69.8 |
490 |
720 |
1600 |
2000 |
9.95 |
|
24122CA/W33 |
110x180x69 |
425 |
750 |
1600 |
2000 |
6.92 |
|
24122MB/W33 |
110x180x69 |
425 |
750 |
1600 |
2000 |
6.92 |
|
24122CC/W33 |
110x180x69 |
425 |
750 |
1600 |
2000 |
6.72 |
|
24022CA/W33 |
110x170x60 |
378 |
565 |
1800 |
2500 |
5.00 |
|
24022MB/W33 |
110x170x60 |
378 |
565 |
1800 |
2500 |
5.00 |
|
24022CC/W33 |
110x170x60 |
378 |
565 |
1800 |
2500 |
4.71 |
|
22222CA/W33 |
110x200x53 |
345 |
545 |
2000 |
2800 |
7.43 |
|
22222MB/W33 |
110x200x53 |
345 |
545 |
2000 |
2800 |
7.43 |
|
22222CC/W33 |
110x200x53 |
345 |
545 |
2000 |
2800 |
7.15 |
|
22322CA/W33 |
110x240x80 |
630 |
955 |
1400 |
1800 |
18.9 |
|
22322MB/W33 |
110x240x80 |
630 |
955 |
1400 |
1800 |
18.9 |
|
22322CC/W33 |
110x240x80 |
630 |
955 |
1400 |
1800 |
18.6 |
|
23024CA/W33 |
120x180x46 |
263 |
495 |
2000 |
2800 |
4.19 |
|
23024MB/W33 |
120x180x46 |
263 |
495 |
2000 |
2800 |
4.19 |
|
23024CC/W33 |
120x180x46 |
263 |
495 |
2000 |
2800 |
4.01 |
|
23124CA/W33 |
120x200x62 |
405 |
715 |
1800 |
2400 |
13.4 |
|
23124MB/W33 |
120x200x62 |
405 |
715 |
1800 |
2400 |
13.4 |
|
23124CC/W33 |
120x200x62 |
405 |
715 |
1800 |
2400 |
13.1 |
|
23224CA/W33 |
120x215x76 |
535 |
940 |
1500 |
1900 |
12.1 |
|
23224MB/W33 |
120x215x76 |
535 |
940 |
1500 |
1900 |
12.1 |
|
23224CC/W33 |
120x215x76 |
535 |
940 |
1500 |
1900 |
11.8 |
|
24124CA/W33 |
120x200x80 |
495 |
925 |
900 |
1200 |
10.6 |
|
24124MB/W33 |
120x200x80 |
495 |
925 |
900 |
1200 |
10.6 |
|
24124CC/W33 |
120x200x80 |
495 |
925 |
900 |
1200 |
10.2 |
|
24024CA/W33 |
120x180x60 |
325 |
660 |
1600 |
2000 |
5.83 |
|
24024MB/W33 |
120x180x60 |
325 |
660 |
1600 |
2000 |
5.83 |
|
24024CC/W33 |
120x180x60 |
325 |
660 |
1600 |
2000 |
5.52 |
|
22224CA/W33 |
120x215x58 |
445 |
735 |
1900 |
2600 |
10.3 |
|
22224MB/W33 |
120x215x58 |
445 |
735 |
1900 |
2600 |
10.3 |
|
22224CC/W33 |
120x215x58 |
445 |
735 |
1900 |
2600 |
10.1 |
|
22324CA/W33 |
120x260x86 |
780 |
1160 |
1400 |
1800 |
23.8 |
|
22324MB/W33 |
120x260x86 |
780 |
1160 |
1400 |
1800 |
23.8 |
|
22324CC/W33 |
120x260x86 |
780 |
1160 |
1400 |
1800 |
23.2 |
|
23026CA/W33 |
130x200x52 |
340 |
650 |
1900 |
2600 |
7.04 |
|
23026MB/W33 |
130x200x52 |
340 |
650 |
1900 |
2600 |
7.04 |
|
23026CC/W33 |
130x200x52 |
340 |
650 |
1900 |
2600 |
6.85 |
|
23126CA/W33 |
130x210x64 |
430 |
790 |
1700 |
2200 |
9.56 |
|
23126MB/W33 |
130x210x64 |
430 |
790 |
1700 |
2200 |
9.56 |
|
23126CC/W33 |
130x210x64 |
430 |
790 |
1700 |
2200 |
9.25 |
|
23226CA/W33 |
130x230x80 |
607 |
1020 |
1300 |
1700 |
15.9 |
|
23226MB/W33 |
130x230x80 |
607 |
1020 |
1300 |
1700 |
15.9 |
|
23226CC/W33 |
130x230x80 |
607 |
1020 |
1300 |
1700 |
15.6 |
|
24126CA/W33 |
130x210x80 |
598 |
910 |
1500 |
1900 |
11.0 |
|
24126MB/W33 |
130x210x80 |
598 |
910 |
1500 |
1900 |
11.0 |
|
24126CC/W33 |
130x210x80 |
598 |
910 |
1500 |
1900 |
10.8 |
|
24026CA/W33 |
130x200x69 |
491 |
740 |
1700 |
2500 |
8.05 |
|
24026MB/W33 |
130x200x70 |
491 |
740 |
1700 |
2500 |
8.05 |
|
24026CC/W33 |
130x200x71 |
491 |
740 |
1700 |
2500 |
7.85 |
|
22226CA/W33 |
130x230x64 |
490 |
805 |
1800 |
2400 |
12.4 |
|
22226MB/W33 |
130x230x64 |
490 |
805 |
1800 |
2400 |
12.4 |
|
22226CC/W33 |
130x230x64 |
490 |
805 |
1800 |
2400 |
12.1 |
|
22326CA/W33 |
130x280x93 |
840 |
1300 |
1300 |
1700 |
18.3 |
|
22326MB/W33 |
130x280x93 |
840 |
1300 |
1300 |
1700 |
18.3 |
|
22326CC/W33 |
130x280x93 |
840 |
1300 |
1300 |
1700 |
18.1 |
|
23028CA/W33 |
140x210x53 |
365 |
705 |
1800 |
2400 |
6.70 |
|
23028MB/W33 |
140x210x53 |
365 |
705 |
1800 |
2400 |
6.70 |
|
23028CC/W33 |
140x210x53 |
365 |
705 |
1800 |
2400 |
6.50 |
|
23128CA/W33 |
140x225x68 |
490 |
935 |
1600 |
2000 |
10.9 |
|
23128MB/W33 |
140x225x68 |
490 |
935 |
1600 |
2000 |
10.9 |
|
23128CC/W33 |
140x225x68 |
490 |
935 |
1600 |
2000 |
10.6 |
|
23228CA/W33 |
140x250x88 |
910 |
1365 |
1200 |
1600 |
19.7 |
|
23228MB/W33 |
140x250x88 |
910 |
1365 |
1200 |
1600 |
19.7 |
|
23228CC/W33 |
140x250x88 |
910 |
1365 |
1200 |
1600 |
19.4 |
|
23328CA/W33 |
140x300x118 |
1300 |
2050 |
1000 |
1400 |
42.2 |
|
23328MB/W33 |
140x300x118 |
1300 |
2050 |
1000 |
1400 |
42.2 |
|
23928CA/W33 |
140x190x37 |
298 |
680 |
2200 |
3000 |
3.1 |
|
24128CA/W33 |
140x225x85 |
580 |
1150 |
850 |
1100 |
13.5 |
|
24128MB/W33 |
140x225x85 |
580 |
1150 |
850 |
1100 |
13.5 |
|
24128CC/W33 |
140x225x85 |
580 |
1150 |
850 |
1100 |
13.1 |
|
24028CA/W33 |
140x210x69 |
518 |
818 |
1700 |
2200 |
8.55 |
|
24028MB/W33 |
140x210x69 |
518 |
818 |
1700 |
2200 |
8.55 |
|
24028CC/W33 |
140x210x69 |
518 |
818 |
1700 |
2200 |
8.14 |
|
22228CA/W33 |
140x250x68 |
560 |
930 |
1700 |
2200 |
16.2 |
|
22228MB/W33 |
140x250x68 |
560 |
930 |
1700 |
2200 |
16.2 |
|
22228CC/W33 |
140x250x68 |
560 |
930 |
1700 |
2200 |
15.7 |
|
22328CA/W33 |
140x300x102 |
1210 |
1950 |
1100 |
1500 |
35.5 |
|
22328MB/W33 |
140x300x102 |
1210 |
1950 |
1100 |
1500 |
35.5 |
|
22328CC/W33 |
140x300x102 |
1210 |
1950 |
1100 |
1500 |
35.1 |
|
23030CA/W33 |
150x225x56 |
400 |
795 |
1700 |
2200 |
7.44 |
|
23030MB/W33 |
150x225x56 |
400 |
795 |
1700 |
2200 |
7.44 |
|
23030CC/W33 |
150x225x56 |
400 |
795 |
1700 |
2200 |
7.24 |
|
23130CA/W33 |
150x250x80 |
745 |
885 |
1400 |
1800 |
16.9 |
|
23130MB/W33 |
150x250x80 |
745 |
885 |
1400 |
1800 |
16.9 |
|
23130CC/W33 |
150x250x80 |
745 |
885 |
1400 |
1800 |
16.4 |
|
23230CA/W33 |
150x270x96 |
950 |
1550 |
1100 |
1500 |
26.6 |
|
23230MB/W33 |
150x270x96 |
950 |
1550 |
1100 |
1500 |
26.6 |
|
23230CC/W33 |
150x270x96 |
950 |
1550 |
1100 |
1500 |
26.2 |
|
24130CA/W33 |
150x250x100 |
928 |
1390 |
1400 |
1800 |
20.2 |
|
24130MB/W33 |
150x250x100 |
928 |
1390 |
1400 |
1800 |
20.2 |
|
24130CC/W33 |
150x250x100 |
928 |
1390 |
1400 |
1800 |
20.0 |
|
24030CA/W33 |
150x225x75 |
500 |
1050 |
1300 |
1700 |
9.39 |
|
24030MB/W33 |
150x225x75 |
500 |
1050 |
1300 |
1700 |
9.39 |
|
24030CC/W33 |
150x225x75 |
500 |
1050 |
1300 |
1700 |
9.11 |
|
22230CA/W33 |
150x270x73 |
630 |
1050 |
1600 |
2000 |
18.7 |
|
22230MB/W33 |
150x270x73 |
630 |
1050 |
1600 |
2000 |
18.7 |
|
22230CC/W33 |
150x270x73 |
630 |
1050 |
1600 |
2000 |
18.2 |
|
22330CA/W33 |
150x320x108 |
1120 |
1810 |
1000 |
1400 |
14.5 |
|
22330MB/W33 |
150x320x108 |
1120 |
1810 |
1000 |
1400 |
14.5 |
|
22330CC/W33 |
150x320x108 |
1120 |
1810 |
1000 |
1400 |
14.1 |
|
23032CA/W33 |
160x240x60 |
445 |
875 |
1700 |
2200 |
8.86 |
|
23032MB/W33 |
160x240x60 |
445 |
875 |
1700 |
2200 |
8.86 |
|
23032CC/W33 |
160x240x60 |
445 |
875 |
1700 |
2200 |
8.42 |
|
23132CA/W33 |
160x270x86 |
765 |
1430 |
1300 |
1700 |
21.9 |
|
23132MB/W33 |
160x270x86 |
765 |
1430 |
1300 |
1700 |
21.9 |
|
23132CC/W33 |
160x270x86 |
765 |
1430 |
1300 |
1700 |
21.4 |
|
23232CA/W33 |
160x290x104 |
955 |
1770 |
1000 |
1400 |
30.2 |
|
23232MB/W33 |
160x290x104 |
955 |
1770 |
1000 |
1400 |
30.2 |
|
23232CC/W33 |
160x290x104 |
955 |
1770 |
1000 |
1400 |
30.0 |
|
23932CA/W33 |
160x220x45 |
350 |
720 |
2000 |
2600 |
5.12 |
|
24132CA/W33 |
160x270x109 |
865 |
1690 |
1000 |
1400 |
24.6 |
|
24132MB/W33 |
160x270x109 |
865 |
1690 |
1000 |
1400 |
24.6 |
|
24132CC/W33 |
160x270x109 |
865 |
1690 |
1000 |
1400 |
24.2 |
|
24032CA/W33 |
160x240x80 |
570 |
1210 |
1100 |
1500 |
13.2 |
|
24032MB/W33 |
160x240x80 |
570 |
1210 |
1100 |
1500 |
13.2 |
|
24032CC/W33 |
160x240x80 |
570 |
1210 |
1100 |
1500 |
13.0 |
|
22232CA/W33 |
160x290x80 |
750 |
1300 |
1500 |
1900 |
24.6 |
|
22232MB/W33 |
160x290x80 |
750 |
1300 |
1500 |
1900 |
24.6 |
|
22232CC/W33 |
160x290x80 |
750 |
1300 |
1500 |
1900 |
24.3 |
|
22332CA/W33 |
160x340x114 |
1270 |
2050 |
950 |
1300 |
52.8 |
|
22332MB/W33 |
160x340x114 |
1270 |
2050 |
950 |
1300 |
52.8 |
|
22332CC/W33 |
160x340x114 |
1270 |
2050 |
950 |
1300 |
52.5 |
|
23034CA/W33 |
170x260x67 |
555 |
1090 |
1600 |
2000 |
14.2 |
|
23034MB/W33 |
170x260x67 |
555 |
1090 |
1600 |
2000 |
14.2 |
|
23034CC/W33 |
170x260x67 |
555 |
1090 |
1600 |
2000 |
14.0 |
|
23134CA/W33 |
170x280x88 |
730 |
1390 |
1200 |
1600 |
26.1 |
|
23134MB/W33 |
170x280x88 |
730 |
1390 |
1200 |
1600 |
26.1 |
|
23134CC/W33 |
170x280x88 |
730 |
1390 |
1200 |
1600 |
25.6 |
|
23234CA/W33 |
170x310x110 |
1070 |
1930 |
950 |
1300 |
38.0 |
|
23234MB/W33 |
170x310x110 |
1070 |
1930 |
950 |
1300 |
38.0 |
|
23234CC/W33 |
170x310x110 |
1070 |
1930 |
950 |
1300 |
37.5 |
|
23934CA/W33 |
170x230x45 |
400 |
800 |
1800 |
2400 |
5.45 |
|
23334CA/W33 |
170x360x136 |
1420 |
2250 |
900 |
1200 |
68.7 |
|
23334MB/W33 |
170x360x136 |
1420 |
2250 |
900 |
1200 |
68.7 |
|
24134CA/W33 |
170x280x109 |
915 |
1830 |
1000 |
1400 |
24.8 |
|
24134MB/W33 |
170x280x109 |
915 |
1830 |
1000 |
1400 |
24.8 |
|
24134CC/W33 |
170x280x109 |
915 |
1830 |
1000 |
1400 |
24.1 |
|
24034CA/W33 |
170x260x90 |
705 |
1500 |
1000 |
1400 |
17.8 |
|
24034MB/W33 |
170x260x90 |
705 |
1500 |
1000 |
1400 |
17.8 |
|
24034CC/W33 |
170x260x90 |
705 |
1500 |
1000 |
1400 |
17.1 |
|
22234CA/W33 |
170x310x86 |
845 |
1450 |
1300 |
1700 |
26.8 |
|
22234MB/W33 |
170x310x86 |
845 |
1450 |
1300 |
1700 |
26.8 |
|
22234CC/W33 |
170x310x86 |
845 |
1450 |
1300 |
1700 |
26.1 |
|
22334CA/W33 |
170x360x120 |
1320 |
2120 |
950 |
1300 |
62.6 |
|
22334MB/W33 |
170x360x120 |
1320 |
2120 |
950 |
1300 |
62.6 |
|
22334CC/W33 |
170x360x120 |
1320 |
2120 |
950 |
1300 |
62.1 |
|
23036CA/W33 |
180x280x74 |
630 |
1280 |
1400 |
1800 |
17.7 |
|
23036MB/W33 |
180x280x74 |
630 |
1280 |
1400 |
1800 |
17.7 |
|
23036CC/W33 |
180x280x74 |
630 |
1280 |
1400 |
1800 |
17.4 |
|
23136CA/W33 |
180x300x96 |
900 |
1720 |
1100 |
1500 |
27.1 |
|
23136MB/W33 |
180x300x96 |
900 |
1720 |
1100 |
1500 |
27.1 |
|
23136CC/W33 |
180x300x96 |
900 |
1720 |
1100 |
1500 |
26.6 |
|
23236CA/W33 |
180x320x112 |
1160 |
2130 |
900 |
1200 |
38.7 |
|
23236MB/W33 |
180x320x112 |
1160 |
2130 |
900 |
1200 |
38.7 |
|
23236CC/W33 |
180x320x112 |
1160 |
2130 |
900 |
1200 |
38.4 |
|
23936CA/W33 |
180x250x52 |
430 |
830 |
1700 |
2200 |
7.34 |
|
23936CC/W33 |
180x250x53 |
430 |
830 |
1700 |
2200 |
7.34 |
|
24136CA/W33 |
180x300x118 |
1020 |
2030 |
900 |
1200 |
33.0 |
|
24136MB/W33 |
180x300x118 |
1020 |
2030 |
900 |
1200 |
33.0 |
|
24136CC/W33 |
180x300x118 |
1020 |
2030 |
900 |
1200 |
32.7 |
|
24036CA/W33 |
180x280x100 |
835 |
1750 |
950 |
1300 |
26.6 |
|
24036MB/W33 |
180x280x100 |
835 |
1750 |
950 |
1300 |
26.6 |
|
24036CC/W33 |
180x280x100 |
835 |
1750 |
950 |
1300 |
26.2 |
|
22236CA/W33 |
180x320x86 |
895 |
1550 |
1300 |
1700 |
29.4 |
|
22236MB/W33 |
180x320x86 |
895 |
1550 |
1300 |
1700 |
29.4 |
|
22236CC/W33 |
180x320x86 |
895 |
1550 |
1300 |
1700 |
29.1 |
|
22336CA/W33 |
180x380x126 |
1470 |
2400 |
900 |
1200 |
72.2 |
|
22336MB/W33 |
180x380x126 |
1470 |
2400 |
900 |
1200 |
72.2 |
|
22336CC/W33 |
180x380x126 |
1470 |
2400 |
900 |
1200 |
72.0 |
|
23038CA/W33 |
190x290x75 |
700 |
1450 |
1300 |
1700 |
17.3 |
|
23038MB/W33 |
190x290x75 |
700 |
1450 |
1300 |
1700 |
17.3 |
|
23038CC/W33 |
190x290x75 |
700 |
1450 |
1300 |
1700 |
17.1 |
|
23138CA/W33 |
190x320x104 |
975 |
1840 |
1000 |
1400 |
34.3 |
|
23138MB/W33 |
190x320x104 |
975 |
1840 |
1000 |
1400 |
34.3 |
|
23138CC/W33 |
190x320x104 |
975 |
1840 |
1000 |
1400 |
34.0 |
|
23238CA/W33 |
190x340x120 |
1290 |
2400 |
850 |
1100 |
44.8 |
|
23238MB/W33 |
190x340x120 |
1290 |
2400 |
850 |
1100 |
44.8 |
|
23238CC/W33 |
190x340x120 |
1290 |
2400 |
850 |
1100 |
44.4 |
|
23938CA/W33 |
190x260x52 |
550 |
980 |
1500 |
2000 |
8.32 |
|
23938CC/W33 |
190x260x52 |
550 |
980 |
1500 |
2000 |
8.01 |
|
24138CA/W33 |
190x320x128 |
1200 |
2400 |
850 |
1100 |
41.9 |
|
24138MB/W33 |
190x320x128 |
1200 |
2400 |
850 |
1100 |
41.9 |
|
24138CC/W33 |
190x320x128 |
1200 |
2400 |
850 |
1100 |
41.5 |
|
24038CA/W33 |
190x290x100 |
855 |
1840 |
950 |
1300 |
22.9 |
|
24038MB/W33 |
190x290x100 |
855 |
1840 |
950 |
1300 |
22.9 |
|
24038CC/W33 |
190x290x100 |
855 |
1840 |
950 |
1300 |
22.5 |
|
22238CA/W33 |
190x340x92 |
865 |
1620 |
1200 |
1600 |
37.4 |
|
22238MB/W33 |
190x340x92 |
865 |
1620 |
1200 |
1600 |
37.4 |
|
22238CC/W33 |
190x340x92 |
865 |
1620 |
1200 |
1600 |
37.0 |
|
22338CA/W33 |
190x400x132 |
1640 |
2630 |
850 |
1100 |
82.2 |
|
22338MB/W33 |
190x400x132 |
1640 |
2630 |
850 |
1100 |
82.2 |
|
22338CC/W33 |
190x400x132 |
1640 |
2630 |
850 |
1100 |
82.0 |
|
23040CA/W33 |
200x310x82 |
770 |
1560 |
1200 |
1600 |
22.6 |
|
23040MB/W33 |
200x310x82 |
770 |
1560 |
1200 |
1600 |
22.6 |
|
23040CC/W33 |
200x310x82 |
770 |
1560 |
1200 |
1600 |
22.1 |
|
23140CA/W33 |
200x340x112 |
1170 |
2240 |
950 |
1300 |
43.8 |
|
23140MB/W33 |
200x340x112 |
1170 |
2240 |
950 |
1300 |
43.8 |
|
23140CC/W33 |
200x340x112 |
1170 |
2240 |
950 |
1300 |
43.1 |
|
23240CA/W33 |
200x360x128 |
1360 |
2530 |
850 |
1100 |
53.4 |
|
23240MB/W33 |
200x360x128 |
1360 |
2530 |
850 |
1100 |
53.4 |
|
23240CC/W33 |
200x360x128 |
1360 |
2530 |
850 |
1100 |
53.1 |
|
23940CA/W33 |
200x280x60 |
495 |
1150 |
1600 |
2000 |
13.2 |
|
23940MB/W33 |
200x280x60 |
495 |
1150 |
1600 |
2000 |
13.2 |
|
23940CC/W33 |
200x280x60 |
495 |
1150 |
1600 |
2000 |
13.0 |
|
23340CA/W33 |
200x420x165 |
2020 |
3500 |
750 |
950 |
125 |
|
23340MB/W33 |
200x420x165 |
2020 |
3500 |
750 |
950 |
125 |
|
24140CA/W33 |
200x340x140 |
1630 |
2450 |
900 |
1200 |
53.5 |
|
24140MB/W33 |
200x340x140 |
1630 |
2450 |
900 |
1200 |
53.5 |
|
24140CC/W33 |
200x340x140 |
1630 |
2450 |
900 |
1200 |
53.1 |
|
24040CA/W33 |
200x310x109 |
985 |
2130 |
900 |
1200 |
31.3 |
|
24040MB/W33 |
200x310x109 |
985 |
2130 |
900 |
1200 |
31.3 |
|
24040CC/W33 |
200x310x109 |
985 |
2130 |
900 |
1200 |
31.0 |
|
22240CA/W33 |
200x360x98 |
1100 |
1950 |
1100 |
1500 |
44.7 |
|
22240MB/W33 |
200x360x98 |
1100 |
1950 |
1100 |
1500 |
44.7 |
|
22240CC/W33 |
200x360x98 |
1100 |
1950 |
1100 |
1500 |
44.1 |
|
22340CA/W33 |
200x420x138 |
1740 |
2860 |
850 |
1100 |
97.0 |
|
22340MB/W33 |
200x420x138 |
1740 |
2860 |
850 |
1100 |
97.0 |
|
22340CC/W33 |
200x420x138 |
1740 |
2860 |
850 |
1100 |
96.6 |
|
23044CA/W33 |
220x340x90 |
935 |
1900 |
1100 |
1500 |
32.0 |
|
23044MB/W33 |
220x340x90 |
935 |
1900 |
1100 |
1500 |
32.0 |
|
23044CC/W33 |
220x340x90 |
935 |
1900 |
1100 |
1500 |
31.7 |
|
23144CA/W33 |
220x370x120 |
1370 |
2710 |
900 |
1200 |
54.7 |
|
23144MB/W33 |
220x370x120 |
1370 |
2710 |
900 |
1200 |
54.7 |
|
23144CC/W33 |
220x370x120 |
1370 |
2710 |
900 |
1200 |
54.4 |
|
23244CA/W33 |
220x400x144 |
1720 |
3200 |
750 |
950 |
77.3 |
|
23244MB/W33 |
220x400x144 |
1720 |
3200 |
750 |
950 |
77.3 |
|
23244CC/W33 |
220x400x144 |
1720 |
3200 |
750 |
950 |
77.0 |
|
23944CA/W33 |
220x300x60 |
500 |
980 |
1520 |
1760 |
12.5 |
|
23944MB/W33 |
220x300x60 |
500 |
980 |
1520 |
1760 |
12.5 |
|
23944CC/W33 |
220x300x60 |
500 |
980 |
1520 |
1760 |
12.1 |
|
24144CA/W33 |
220x370x150 |
1920 |
3045 |
800 |
1000 |
67.0 |
|
24144MB/W33 |
220x370x150 |
1920 |
3045 |
800 |
1000 |
67.0 |
|
24144CC/W33 |
220x370x150 |
1920 |
3045 |
800 |
1000 |
66.6 |
|
24044CA/W33 |
220x340x118 |
1150 |
2500 |
850 |
1100 |
39.1 |
|
24044MB/W33 |
220x340x118 |
1150 |
2500 |
850 |
1100 |
39.1 |
|
24044CC/W33 |
220x340x118 |
1150 |
2500 |
850 |
1100 |
38.7 |
|
22244CA/W33 |
220x400x108 |
1350 |
2400 |
950 |
1300 |
63.5 |
|
22244MB/W33 |
220x400x108 |
1350 |
2400 |
950 |
1300 |
63.5 |
|
22244CC/W33 |
220x400x108 |
1350 |
2400 |
950 |
1300 |
63.1 |
|
22344CA/W33 |
220x460x145 |
2450 |
3130 |
800 |
1000 |
115 |
|
22344MB/W33 |
220x460x145 |
2450 |
3130 |
800 |
1000 |
115 |
|
22344CC/W33 |
220x460x145 |
2450 |
3130 |
800 |
1000 |
115 |
|
23048CA/W33 |
240x360x92 |
985 |
2080 |
1000 |
1400 |
34.2 |
|
23048MB/W33 |
240x360x92 |
985 |
2080 |
1000 |
1400 |
34.2 |
|
23048CC/W33 |
240x360x92 |
985 |
2080 |
1000 |
1400 |
34.0 |
|
23148CA/W33 |
240x400x128 |
1500 |
3000 |
850 |
1100 |
68.2 |
|
23148MB/W33 |
240x400x128 |
1500 |
3000 |
850 |
1100 |
68.2 |
|
23148CC/W33 |
240x400x128 |
1500 |
3000 |
850 |
1100 |
68.0 |
|
23248CA/W33 |
240x440x160 |
2080 |
3950 |
750 |
900 |
102 |
|
23248MB/W33 |
240x440x160 |
2080 |
3950 |
750 |
900 |
102 |
|
23248CC/W33 |
240x440x160 |
2080 |
3950 |
750 |
900 |
102 |
|
23948CA/W33 |
240x320x60 |
530 |
1310 |
1300 |
1700 |
15.0 |
|
23948MB/W33 |
240x320x60 |
530 |
1310 |
1300 |
1700 |
15.0 |
|
23948CC/W33 |
240x320x60 |
530 |
1310 |
1300 |
1700 |
14.7 |
|
24148CA/W33 |
240x400x160 |
1660 |
3400 |
800 |
1000 |
79.0 |
|
24148MB/W33 |
240x400x160 |
1660 |
3400 |
800 |
1000 |
79.0 |
|
24148CC/W33 |
240x400x160 |
1660 |
3400 |
800 |
1000 |
78.6 |
|
24048CA/W33 |
240x360x118 |
1240 |
2800 |
900 |
1200 |
46.5 |
|
24048MB/W33 |
240x360x118 |
1240 |
2800 |
900 |
1200 |
46.5 |
|
24048CC/W33 |
240x360x118 |
1240 |
2800 |
900 |
1200 |
46.1 |
|
22248CA/W33 |
240x440x120 |
1640 |
1820 |
850 |
1150 |
85.0 |
|
22248MB/W33 |
240x440x120 |
1640 |
1820 |
850 |
1150 |
85.0 |
|
22248CC/W33 |
240x440x120 |
1640 |
1820 |
850 |
1150 |
84.8 |
|
22348CA/W33 |
240x500x155 |
2480 |
3200 |
750 |
1000 |
150 |
|
22348MB/W33 |
240x500x155 |
2480 |
3200 |
750 |
1000 |
150 |
|
22348CC/W33 |
240x500x155 |
2480 |
3200 |
750 |
1000 |
149 |
|
23052MB/W33 |
260x400x104 |
1230 |
2550 |
900 |
1200 |
49.8 |
|
23052CC/W33 |
260x400x104 |
1230 |
2550 |
900 |
1200 |
49.1 |
|
23152CA/W33 |
260x440x144 |
1860 |
3750 |
800 |
1000 |
88.9 |
|
23152MB/W33 |
260x440x144 |
1860 |
3750 |
800 |
1000 |
88.9 |
|
23152CC/W33 |
260x440x144 |
1860 |
3750 |
800 |
1000 |
88.2 |
|
23252CA/W33 |
260x480x174 |
2800 |
4750 |
630 |
800 |
141 |
|
23252MB/W33 |
260x480x174 |
2800 |
4750 |
630 |
800 |
141 |
|
23252CC/W33 |
260x480x174 |
2800 |
4750 |
630 |
800 |
140 |
|
23952CA/W33 |
260x360x75 |
820 |
1750 |
1100 |
1500 |
21.6 |
|
23952MB/W33 |
260x360x75 |
820 |
1750 |
1100 |
1500 |
21.6 |
|
23952CC/W33 |
260x360x75 |
820 |
1750 |
1100 |
1500 |
21.6 |
|
24152CA/W33 |
260x440x180 |
2100 |
4350 |
650 |
850 |
115 |
|
24152MB/W33 |
260x440x180 |
2100 |
4350 |
650 |
850 |
115 |
|
24152CC/W33 |
260x440x180 |
2100 |
4350 |
650 |
850 |
114 |
|
24052CA/W33 |
260x400x140 |
1780 |
1910 |
750 |
1000 |
66.7 |
|
24052MB/W33 |
260x400x140 |
1780 |
1910 |
750 |
1000 |
66.7 |
|
24052CC/W33 |
260x400x140 |
1780 |
1910 |
750 |
1000 |
66.2 |
|
24952CA/W33 |
260x360x100 |
970 |
2050 |
1000 |
1400 |
31.3 |
|
22252CA/W33 |
260x480x130 |
1900 |
3600 |
850 |
1100 |
106 |
|
22252MB/W33 |
260x480x130 |
1900 |
3600 |
850 |
1100 |
106 |
|
22252CC/W33 |
260x480x130 |
1900 |
3600 |
850 |
1100 |
105 |
|
22352CA/W33 |
260x540x165 |
3000 |
4700 |
630 |
800 |
184 |
|
22352MB/W33 |
260x540x165 |
3000 |
4700 |
630 |
800 |
184 |
|
22352CC/W33 |
260x540x165 |
3000 |
4700 |
630 |
800 |
183 |
|
23056CA/W33 |
280x420x106 |
1320 |
2850 |
850 |
1100 |
56.8 |
|
23056MB/W33 |
280x420x106 |
1320 |
2850 |
850 |
1100 |
56.8 |
|
23056CC/W33 |
280x420x106 |
1320 |
2850 |
850 |
1100 |
56.1 |
|
23156CA/W33 |
280x460x146 |
1990 |
4150 |
750 |
950 |
104 |
|
23156MB/W33 |
280x460x146 |
1990 |
4150 |
750 |
950 |
104 |
|
23156CC/W33 |
280x460x146 |
1990 |
4150 |
750 |
950 |
103 |
|
23256CA/W33 |
280x500x176 |
2580 |
5100 |
600 |
750 |
147 |
|
23256MB/W33 |
280x500x176 |
2580 |
5100 |
600 |
750 |
147 |
|
23256CC/W33 |
280x500x176 |
2580 |
5100 |
600 |
750 |
146 |
|
23956CA/W33 |
280x380x75 |
700 |
1850 |
1000 |
1400 |
25.8 |
|
23956MB/W33 |
280x380x75 |
700 |
1850 |
1000 |
1400 |
25.8 |
|
23956CC/W33 |
280x380x75 |
700 |
1850 |
1000 |
1400 |
25.2 |
|
24156CA/W33 |
280x460x180 |
2220 |
4750 |
600 |
800 |
119 |
|
24156MB/W33 |
280x460x180 |
2220 |
4750 |
600 |
800 |
119 |
|
24156CC/W33 |
280x460x180 |
2220 |
4750 |
600 |
800 |
118 |
|
24056CA/W33 |
280x420x140 |
1620 |
3700 |
670 |
850 |
68.9 |
|
24056MB/W33 |
280x420x140 |
1620 |
3700 |
670 |
850 |
68.9 |
|
24056CC/W33 |
280x420x140 |
1620 |
3700 |
670 |
850 |
68.1 |
|
22256CA/W33 |
280x500x130 |
1990 |
3600 |
800 |
1000 |
118 |
|
22256MB/W33 |
280x500x130 |
1990 |
3600 |
800 |
1000 |
118 |
|
22256CC/W33 |
280x500x130 |
1990 |
3600 |
800 |
1000 |
117 |
|
22356CA/W33 |
280x580x175 |
3200 |
5700 |
600 |
750 |
221 |
|
22356MB/W33 |
280x580x175 |
3200 |
5700 |
600 |
750 |
221 |
|
22356CC/W33 |
280x580x175 |
3200 |
5700 |
600 |
750 |
220 |
|
23060CA/W33 |
300x460x118 |
1610 |
3450 |
800 |
1000 |
75.2 |
|
23060MB/W33 |
300x460x118 |
1610 |
3450 |
800 |
1000 |
75.2 |
|
23060CC/W33 |
300x460x118 |
1610 |
3450 |
800 |
1000 |
75.0 |
|
23160CA/W33 |
300x500x160 |
2310 |
4750 |
670 |
850 |
126 |
|
23160MB/W33 |
300x500x160 |
2310 |
4750 |
670 |
850 |
126 |
|
23160CC/W33 |
300x500x160 |
2310 |
4750 |
670 |
850 |
125 |
|
23260CA/W33 |
300x540x192 |
3300 |
5600 |
530 |
670 |
192 |
|
23260MB/W33 |
300x540x192 |
3300 |
5600 |
530 |
670 |
192 |
|
23260CC/W33 |
300x540x192 |
3300 |
5600 |
530 |
, 670 |
191 |
|
23960CA/W33 |
300x420x90 |
1050 |
2500 |
950 |
1300 |
40.1 |
|
23960MB/W33 |
300x420x90 |
1050 |
2500 |
950 |
1300 |
40.1 |
|
23960CC/W33 |
300x420x90 |
1050 |
2500 |
950 |
1300 |
39.7 |
|
24160CA/W33 |
300x500x200 |
3400 |
5700 |
560 |
720 |
160 |
|
24160MB/W33 |
300x500x200 |
3400 |
5700 |
560 |
720 |
160 |
|
24160CC/W33 |
300x500x200 |
3400 |
5700 |
560 |
720 |
159 |
|
24060CA/W33 |
300x460x160 |
2020 |
2700 |
600 |
750 |
99.0 |
|
24060MB/W33 |
300x460x160 |
2020 |
2700 |
600 |
750 |
99.0 |
|
24060CC/W33 |
300x460x160 |
2020 |
2700 |
600 |
750 |
98.2 |
|
22260CA/W33 |
300x540x140 |
2310 |
4300 |
750 |
950 |
138 |
|
22260MB/W33 |
300x540x140 |
2310 |
4300 |
750 |
950 |
138 |
|
22260CC/W33 |
300x540x140 |
2310 |
4300 |
750 |
950 |
137 |
|
22360CA/W33 |
300x620x185 |
3500 |
5800 |
500 |
650 |
270 |
|
22360MB/W33 |
300x620x185 |
3500 |
5800 |
500 |
650 |
270 |
|
23064CA/W33 |
320x480x121 |
1930 |
2200 |
800 |
1000 |
85.5 |
|
23064MB/W33 |
320x480x121 |
1930 |
2200 |
800 |
1000 |
85.5 |
|
23064CC/W33 |
320x480x121 |
1930 |
2200 |
800 |
1000 |
85.0 |
|
23164CA/W33 |
320x540x176 |
3150 |
5800 |
630 |
800 |
195 |
|
23164MB/W33 |
320x540x176 |
3150 |
5800 |
630 |
800 |
195 |
|
23164CC/W33 |
320x540x176 |
3150 |
5800 |
630 |
800 |
194 |
|
23264CA/W33 |
320x580x208 |
3900 |
6800 |
500 |
630 |
253 |
|
23264MB/W33 |
320x580x208 |
3900 |
6800 |
500 |
630 |
253 |
|
23264CC/W33 |
320x580x208 |
3900 |
6800 |
500 |
630 |
252 |
|
23964CA/W33 |
320x440x90 |
1140 |
2660 |
900 |
1200 |
43.0 |
|
23964MB/W33 |
320x440x90 |
1140 |
2660 |
900 |
1200 |
43.0 |
|
23964CC/W33 |
320x440x90 |
1140 |
2660 |
900 |
1200 |
42.5 |
|
24164CA/W33 |
320x540x218 |
3850 |
7300 |
500 |
700 |
167 |
|
24164MB/W33 |
320x540x218 |
3850 |
7300 |
500 |
700 |
167 |
|
24164CC/W33 |
320x540x218 |
3850 |
7300 |
500 |
700 |
166 |
|
24064CA/W33 |
320x480x160 |
2480 |
5100 |
560 |
700 |
106 |
|
24064MB/W33 |
320x480x160 |
2480 |
5100 |
560 |
700 |
106 |
|
24064CC/W33 |
320x480x160 |
2480 |
5100 |
560 |
700 |
105 |
|
22264CA/W33 |
320x580x150 |
2490 |
4550 |
670 |
850 |
175 |
|
22264MB/W33 |
320x580x150 |
2490 |
4550 |
670 |
850 |
175 |
|
22264CC/W33 |
320x580x150 |
2490 |
4550 |
670 |
850 |
174 |
|
22364CA/W33 |
320x670x200 |
3700 |
6000 |
450 |
600 |
352 |
|
22364MB/W33 |
320x670x200 |
3700 |
6000 |
450 |
600 |
352 |
|
23068CA/W33 |
340x520x133 |
1980 |
4400 |
700 |
900 |
115 |
|
23068MB/W33 |
340x520x133 |
1980 |
4400 |
700 |
900 |
115 |
|
23068CC/W33 |
340x520x133 |
1980 |
4400 |
700 |
900 |
114 |
|
23168CA/W33 |
340x580x190 |
3050 |
6300 |
600 |
750 |
211 |
|
23168MB/W33 |
340x580x190 |
3050 |
6300 |
600 |
750 |
211 |
|
23168CC/W33 |
340x580x190 |
3050 |
6300 |
600 |
750 |
210 |
|
23268CA/W33 |
340x620x224 |
4450 |
8000 |
380 |
570 |
300 |
|
23268MB/W33 |
340x620x224 |
4450 |
8000 |
380 |
570 |
300 |
|
23968CA/W33 |
340x460x90 |
1200 |
2700 |
900 |
1200 |
45.6 |
|
23968MB/W33 |
340x460x90 |
1200 |
2700 |
900 |
1200 |
45.6 |
|
23968CC/W33 |
340x460x90 |
1200 |
2700 |
900 |
1200 |
45.1 |
|
24168CA/W33 |
340x580x243 |
4600 |
8250 |
400 |
600 |
269 |
|
24168MB/W33 |
340x580x243 |
4600 |
8250 |
400 |
600 |
269 |
|
24168CC/W33 |
340x580x243 |
4600 |
8250 |
400 |
600 |
268 |
|
24068CA/W33 |
340x520x180 |
2460 |
5700 |
530 |
670 |
137 |
|
24068MB/W33 |
340x520x180 |
2460 |
5700 |
530 |
670 |
137 |
|
24068CC/W33 |
340x520x180 |
2460 |
5700 |
530 |
670 |
136 |
|
22268CA/W33 |
340x620x165 |
2650 |
5050 |
550 |
700 |
225 |
|
22268MB/W33 |
340x620x165 |
2650 |
5050 |
550 |
700 |
225 |
|
22368CA/W33 |
340x710x212 |
3950 |
6500 |
400 |
550 |
419 |
|
22368MB/W33 |
340x710x212 |
3950 |
6500 |
400 |
550 |
419 |
|
23072CA/W33 |
360x540x134 |
2280 |
4800 |
670 |
850 |
126 |
|
23072MB/W33 |
360x540x134 |
2280 |
4800 |
670 |
850 |
126 |
|
23072CC/W33 |
360x540x134 |
2280 |
4800 |
670 |
850 |
125 |
|
23172CA/W33 |
360x600x192 |
3250 |
6850 |
560 |
700 |
255 |
|
23172MB/W33 |
360x600x192 |
3250 |
6850 |
560 |
700 |
255 |
|
23172CC/W33 |
360x600x192 |
3250 |
6850 |
560 |
700 |
254 |
|
23272CA/W33 |
360x650x232 |
4650 |
8300 |
400 |
500 |
330 |
|
23272MB/W33 |
360x650x232 |
4650 |
8300 |
400 |
500 |
330 |
|
23972CA/W33 |
360x480x90 |
1290 |
2820 |
850 |
1100 |
46.6 |
|
23972MB/W33 |
360x480x90 |
1290 |
2820 |
850 |
1100 |
46.6 |
|
23972CC/W33 |
360x480x90 |
1290 |
2820 |
850 |
1100 |
46.1 |
|
24172CA/W33 |
360x600x243 |
5600 |
8400 |
400 |
500 |
270 |
|
24172MB/W33 |
360x600x243 |
5600 |
8400 |
400 |
500 |
270 |
|
24172CC/W33 |
360x600x243 |
5600 |
8400 |
400 |
500 |
269 |
|
24072CA/W33 |
360x540x180 |
3100 |
6600 |
630 |
800 |
147 |
|
24072MB/W33 |
360x540x180 |
3100 |
6600 |
630 |
800 |
147 |
|
24072CC/W33 |
360x540x180 |
3100 |
6600 |
630 |
800 |
146 |
|
22372CA/W33 |
360x750x224 |
4900 |
8600 |
350 |
450 |
466 |
|
22372MB/W33 |
360x750x224 |
4900 |
8600 |
350 |
450 |
466 |
|
23076CA/W33 |
380x560x135 |
2480 |
5000 |
630 |
800 |
130 |
|
23076MB/W33 |
380x560x135 |
2480 |
5000 |
630 |
800 |
130 |
|
23076CC/W33 |
380x560x135 |
2480 |
5000 |
630 |
800 |
129 |
|
23176CA/W33 |
380x620x194 |
3400 |
7350 |
400 |
500 |
244 |
|
23176MB/W33 |
380x620x194 |
3400 |
7350 |
400 |
500 |
244 |
|
23176CC/W33 |
380x620x194 |
3400 |
7350 |
400 |
500 |
243 |
|
23276CA/W33 |
380x680x240 |
5200 |
9500 |
380 |
480 |
380 |
|
23276MB/W33 |
380x680x240 |
5200 |
9500 |
380 |
480 |
380 |
|
23976CA/W33 |
380x520x106 |
1730 |
3800 |
800 |
1000 |
69.5 |
|
23976MB/W33 |
380x520x106 |
1730 |
3800 |
800 |
1000 |
69.5 |
|
23976CC/W33 |
380x520x106 |
1730 |
3800 |
800 |
1000 |
69.1 |
|
24176CA/W33 |
380x620x243 |
5800 |
9650 |
400 |
500 |
296 |
|
24176MB/W33 |
380x620x243 |
5800 |
9650 |
400 |
500 |
296 |
|
24076CA/W33 |
380x560x180 |
3150 |
6900 |
480 |
600 |
153 |
|
24076MB/W33 |
380x560x180 |
3150 |
6900 |
480 |
600 |
153 |
|
24076CC/W33 |
380x560x180 |
3150 |
6900 |
480 |
600 |
152 |
|
23080CA/W33 |
400x600x148 |
2540 |
5900 |
600 |
750 |
161 |
|
23080MB/W33 |
400x600x148 |
2540 |
5900 |
600 |
750 |
161 |
|
23080CC/W33 |
400x600x148 |
2540 |
5900 |
600 |
750 |
160 |
|
23180CA/W33 |
400x650x200 |
4100 |
7650 |
380 |
480 |
275 |
|
23180MB/W33 |
400x650x200 |
4100 |
7650 |
380 |
480 |
275 |
|
23280CA/W33 |
400x720x256 |
6150 |
11300 |
340 |
430 |
353 |
|
23280MB/W33 |
400x720x256 |
6150 |
11300 |
340 |
430 |
353 |
|
23980CA/W33 |
400x540x106 |
2200 |
3900 |
750 |
950 |
72.4 |
|
23980MB/W33 |
400x540x106 |
2200 |
3900 |
750 |
950 |
72.4 |
|
23980CC/W33 |
400x540x106 |
2200 |
3900 |
750 |
950 |
72.0 |
|
24180CA/W33 |
400x650x250 |
5100 |
10300 |
380 |
480 |
329 |
|
24180MB/W33 |
400x650x250 |
5100 |
10300 |
380 |
480 |
329 |
|
24080CA/W33 |
400x600x200 |
3600 |
7800 |
450 |
560 |
202 |
|
24080MB/W33 |
400x600x200 |
3600 |
7800 |
450 |
560 |
202 |
|
24080CC/W33 |
400x600x200 |
3600 |
7800 |
450 |
560 |
201 |
|
22280CA/W33 |
400x720x185 |
4400 |
7400 |
420 |
550 |
337 |
|
22280MB/W33 |
400x720x185 |
4400 |
7400 |
420 |
550 |
337 |
|
22380CA/W33 |
400x820x243 |
6820 |
9500 |
350 |
450 |
640 |
|
22380MB/W33 |
400x820x243 |
6820 |
9500 |
350 |
450 |
640 |
|
23084CA/W33 |
420x620x150 |
2700 |
6400 |
450 |
560 |
149 |
|
23084MB/W33 |
420x620x150 |
2700 |
6400 |
450 |
560 |
149 |
|
23084CC/W33 |
420x620x150 |
2700 |
6400 |
450 |
560 |
148 |
|
23184CA/W33 |
420x700x224 |
4250 |
9200 |
360 |
450 |
353 |
|
23184MB/W33 |
420x700x224 |
4250 |
9200 |
360 |
450 |
353 |
|
23184CC/W33 |
420x700x224 |
4250 |
9200 |
360 |
450 |
352 |
|
23284CA/W33 |
420x760x272 |
5610 |
11900 |
320 |
400 |
550 |
|
23284MB/W33 |
420x760x272 |
5610 |
11900 |
320 |
400 |
550 |
|
23984CA/W33 |
420x560x106 |
2300 |
4250 |
600 |
800 |
71.6 |
|
23984MB/W33 |
420x560x106 |
2300 |
4250 |
600 |
800 |
71.6 |
|
24184CA/W33 |
420x700x280 |
5600 |
11900 |
340 |
450 |
421 |
|
24184MB/W33 |
420x700x280 |
5600 |
11900 |
340 |
450 |
421 |
|
24084CA/W33 |
420x620x200 |
3350 |
8450 |
380 |
480 |
202 |
|
24084MB/W33 |
420x620x200 |
3350 |
8450 |
380 |
480 |
202 |
|
23088CA/W33 |
440x650x157 |
2780 |
6500 |
430 |
530 |
185 |
|
23088MB/W33 |
440x650x157 |
2780 |
6500 |
430 |
530 |
185 |
|
23188CA/W33 |
440x720x226 |
4500 |
10000 |
340 |
430 |
378 |
|
23188MB/W33 |
440x720x226 |
4500 |
10000 |
340 |
430 |
378 |
|
23288CA/W33 |
440x790x280 |
6900 |
12800 |
300 |
400 |
594 |
|
23288MB/W33 |
440x790x280 |
6900 |
12800 |
300 |
400 |
594 |
|
23988CA/W33 |
440x600x118 |
2450 |
4800 |
500 |
680 |
96.3 |
|
23988MB/W33 |
440x600x118 |
2450 |
4800 |
500 |
680 |
96.3 |
|
24188CA/W33 |
440x720x280 |
6000 |
12000 |
320 |
430 |
433 |
|
24188MB/W33 |
440x720x280 |
6000 |
12000 |
320 |
430 |
433 |
|
24088CA/W33 |
440x650x212 |
4150 |
9100 |
330 |
420 |
237 |
|
24088MB/W33 |
440x650x212 |
4150 |
9100 |
330 |
420 |
237 |
|
23092CA/W33 |
460x680x163 |
3450 |
6950 |
400 |
500 |
226 |
|
23092MB/W33 |
460x680x163 |
3450 |
6950 |
400 |
500 |
226 |
|
23192CA/W33 |
460x760x240 |
5500 |
10000 |
320 |
400 |
457 |
|
23192MB/W33 |
460x760x240 |
5500 |
10000 |
320 |
400 |
457 |
|
23292CA/W33 |
460x830x296 |
7350 |
13500 |
300 |
380 |
698 |
|
23292MB/W33 |
460x830x296 |
7350 |
13500 |
300 |
380 |
698 |
|
23992CA/W33 |
460x620x118 |
2550 |
4950 |
430 |
530 |
100 |
|
23992MB/W33 |
460x620x118 |
2550 |
4950 |
430 |
530 |
100 |
|
24192CA/W33 |
460x760x300 |
6100 |
14400 |
300 |
400 |
558 |
|
24192MB/W33 |
460x760x300 |
6100 |
14400 |
300 |
400 |
558 |
|
24092CA/W33 |
460x680x218 |
4200 |
9200 |
320 |
400 |
277 |
|
24092MB/W33 |
460x680x218 |
4200 |
9200 |
320 |
400 |
277 |
|
23096CA/W33 |
480x700x165 |
3800 |
7950 |
400 |
480 |
218 |
|
23096MB/W33 |
480x700x165 |
3800 |
7950 |
400 |
480 |
218 |
|
23196CA/W33 |
480x790x248 |
6100 |
12000 |
300 |
380 |
516 |
|
23296CA/W33 |
480x870x310 |
6750 |
15200 |
260 |
340 |
853 |
|
23296MB/W33 |
480x870x310 |
6750 |
15200 |
260 |
340 |
853 |
|
23996CA/W33 |
480x650x128 |
2150 |
5750 |
400 |
500 |
125 |
|
23996MB/W33 |
480x650x128 |
2150 |
5750 |
400 |
500 |
125 |
|
24196CA/W33 |
480x790x308 |
7150 |
14600 |
300 |
380 |
616 |
|
24196MB/W33 |
480x790x308 |
7150 |
14600 |
300 |
380 |
616 |
|
24096CA/W33 |
480x700x218 |
4600 |
10200 |
320 |
400 |
288 |
|
239/108CA |
500x620x108 |
2350 |
5450 |
450 |
550 |
73.6 |
|
239/118CA |
500x620x118 |
2400 |
5500 |
450 |
550 |
80.6 |
|
230/500CA/W33 |
500x720x167 |
3150 |
7650 |
380 |
480 |
228 |
|
230/500MB/W33 |
500x720x167 |
3150 |
7650 |
380 |
480 |
228 |
|
231/500CA/W33 |
500x830x264 |
6850 |
13400 |
280 |
360 |
567 |
|
232/500CA/W33 |
500x920x336 |
8600 |
18600 |
260 |
340 |
985 |
|
232/500MB/W33 |
500x920x336 |
8600 |
18600 |
260 |
340 |
985 |
|
239/500CA/W33 |
500x670x128 |
2530 |
6000 |
400 |
500 |
120 |
|
239/500MB/W33 |
500x670x128 |
2530 |
6000 |
400 |
500 |
120 |
|
241/500CA/W33 |
500x830x325 |
8000 |
16000 |
260 |
360 |
669 |
|
241/500MB/W33 |
500x830x325 |
8000 |
16000 |
260 |
360 |
669 |
|
240/500CA/W33 |
500x720x218 |
4450 |
9900 |
300 |
400 |
298 |
|
230/530CA/W33 |
530x780x185 |
3900 |
9650 |
340 |
430 |
339 |
|
|
